DirectX development has evolved dramatically over the past decade, leaving many developers confused about legacy files and utilities that once played crucial roles in graphics programming. One such file that frequently appears in older DirectX projects is “d3dutil.h” – a utility header that has sparked countless forum discussions and compiler errors for modern developers attempting to work with legacy code.
If you’ve encountered “d3dutil.h” while working with DirectX tutorials or legacy projects, you’re not alone. This comprehensive guide will explain everything you need to know about this utility header, from its origins to modern alternatives that can replace its functionality in contemporary DirectX development.
Table of Contents

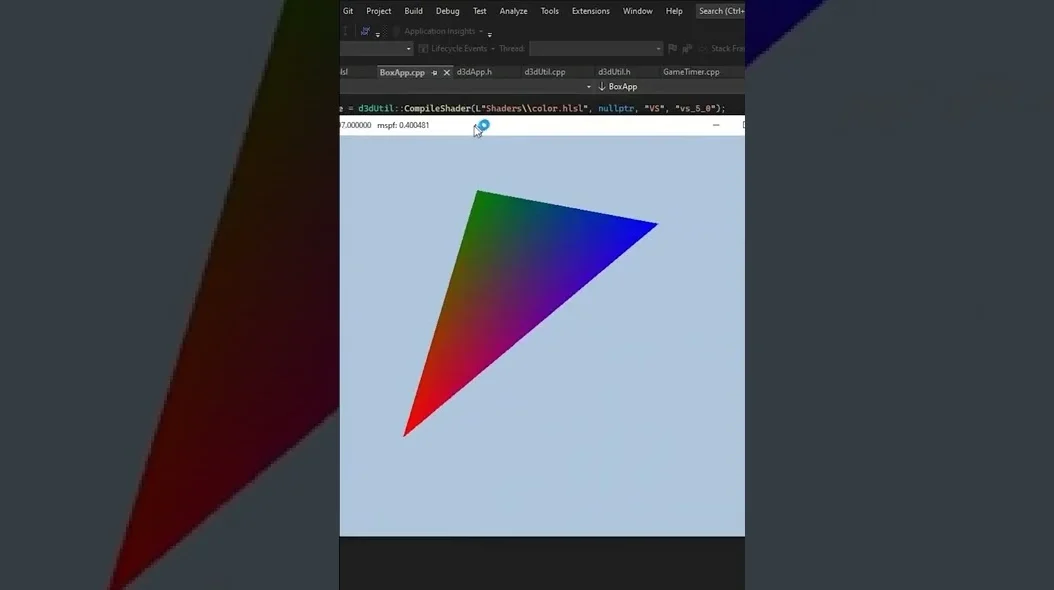

What is d3dutil.h?
This header file is not an official component of Microsoft’s DirectX SDK. Instead, it’s a custom utility header file created by Frank Luna, author of several popular DirectX programming books, including “Introduction to 3D Game Programming with DirectX.” This header contains helper functions, macros, and utility code designed to simplify common DirectX programming tasks.
Unlike core DirectX headers such as d3d11.h or d3d9.h, it serves as a convenience layer that abstracts away repetitive DirectX operations. It provides streamlined functions for matrix operations, error handling, texture loading, and other common graphics programming tasks that would otherwise require verbose DirectX API calls.
History and Background
Origins in DirectX Education
Frank Luna developed it as part of his educational approach to teaching DirectX programming. His books, particularly those covering DirectX 9, 10, and 11, included this header file as part of the accompanying source code. The file gained popularity among DirectX learners because it simplified many complex operations that beginners found challenging.
The utility header became widely distributed through Luna’s book examples and tutorials, leading many developers to assume it was an official DirectX component. This misconception has persisted, causing confusion when developers attempt to compile older DirectX projects on modern systems.
Evolution Through DirectX Versions
It evolved alongside DirectX versions:
DirectX 9 Era (2002-2007)
- Initial versions focused on Direct3D 9 functionality
- Included helpers for matrix math using D3DX math libraries
- Provided texture loading utilities using D3DX functions
DirectX 10 Era (2006-2009)
- Updated to support DirectX 10 features
- Maintained compatibility with D3DX10 libraries
- Added utilities for shader compilation and resource management
DirectX 11 Era (2009-2015)
- Extended support for DirectX 11 features
- Continued reliance on D3DX11 and XNA Math libraries
- Included error handling macros using dxerr.lib
The Deprecation Problem
As Microsoft evolved DirectX, several libraries that it depended on were deprecated or removed:
- D3DX Libraries: Deprecated starting with Windows 8
- XNA Math: Replaced by DirectXMath
- dxerr.lib: Incompatible with Visual Studio 2015 and later
This created a cascade of compatibility issues for projects using it, as the underlying dependencies were no longer available in modern DirectX distributions.
Key Features and Functions
Matrix Transformation Utilities
It provided simplified matrix operations that wrapped complex DirectX math:
// Example matrix utility function
D3DXMATRIX CreateWorldMatrix(D3DXVECTOR3 position, D3DXVECTOR3 rotation, D3DXVECTOR3 scale)
{
D3DXMATRIX world, trans, rot, scaleMatrix;
D3DXMatrixTranslation(&trans, position.x, position.y, position.z);
D3DXMatrixRotationYawPitchRoll(&rot, rotation.y, rotation.x, rotation.z);
D3DXMatrixScaling(&scaleMatrix, scale.x, scale.y, scale.z);
world = scaleMatrix * rot * trans;
return world;
}
Error Handling Macros
One of the most commonly used features was the HR macro for error handling:
#define HR(x) \
{ \
HRESULT hr = (x); \
if(FAILED(hr)) \
{ \
DXTrace(__FILEW__, (DWORD)__LINE__, hr, L#x, true); \
} \
}
Texture Loading Helpers
The header included wrapper functions for D3DX texture loading:
// Simplified texture loading
ID3D11ShaderResourceView* LoadTexture(ID3D11Device* device, const wchar_t* filename)
{
ID3D11ShaderResourceView* srv = nullptr;
HR(D3DX11CreateShaderResourceViewFromFile(device, filename, 0, 0, &srv, 0));
return srv;
}
Frustum Plane Extraction
Mathematical utilities for 3D graphics calculations:
void ExtractFrustumPlanes(XMFLOAT4 planes[6], CXMMATRIX viewProjMatrix)
{
// Implementation for extracting frustum planes from view-projection matrix
// Used for frustum culling operations
}
Deprecation and Modern Alternatives
Why it Became Obsolete
The deprecation of d3dutil.h stems from Microsoft’s strategic shift in DirectX development:
- Library Consolidation: Microsoft moved away from separate utility libraries
- Open Source Approach: Core functionality was open-sourced in separate repositories
- Performance Optimization: Modern alternatives provide better performance
- Maintenance Burden: Deprecated libraries were no longer maintained
Modern Replacement Libraries
| Legacy Component | Modern Alternative | Repository |
|---|---|---|
| D3DX Math | DirectXMath | Built into Windows SDK |
| D3DX Texture Loading | DirectXTex | Microsoft/DirectXTex |
| Effects Framework | Effects 11 | Microsoft/FX11 |
| Mesh Utilities | DirectXMesh | Microsoft/DirectXMesh |
| Error Handling | Custom Implementation | N/A |
Migration Path to Modern DirectX
Step 1: Replace Math Libraries
// Old d3dutil.h approach
#include <xnamath.h>
XMMATRIX worldMatrix = XMMatrixIdentity();
// Modern DirectXMath approach
#include <DirectXMath.h>
using namespace DirectX;
XMMATRIX worldMatrix = XMMatrixIdentity();
Step 2: Update Texture Loading
// Legacy D3DX approach
HR(D3DX11CreateShaderResourceViewFromFile(device, L"texture.dds", 0, 0, &srv, 0));
// Modern DirectXTex approach
ID3D11Resource* resource = nullptr;
HR(DirectX::CreateDDSTextureFromFile(device, L"texture.dds", &resource, &srv));
Step 3: Modernize Error Handling
// Updated HR macro without dxerr.lib
#define HR(x) \
{ \
HRESULT hr = (x); \
if(FAILED(hr)) \
{ \
LPWSTR output; \
FormatMessage(FORMAT_MESSAGE_FROM_SYSTEM | \
FORMAT_MESSAGE_IGNORE_INSERTS | \
FORMAT_MESSAGE_ALLOCATE_BUFFER, \
NULL, hr, MAKELANGID(LANG_NEUTRAL, SUBLANG_DEFAULT), \
(LPTSTR)&output, 0, NULL); \
MessageBox(NULL, output, L"Error", MB_OK); \
} \
}
Compatibility and Integration
Working with Legacy Projects
When encountering projects that use it, developers have several options:
Option 1: Install Legacy SDK
- Download June 2010 DirectX SDK
- Configure include and library paths
- Resolve potential conflicts with newer SDKs
Option 2: Modernize Dependencies
- Replace its functions with modern equivalents
- Update project files to use contemporary libraries
- Refactor code to eliminate deprecated API calls
Option 3: Create Custom Wrapper
- Implement a modern version of essential functions
- Use current DirectX libraries as the foundation
- Maintain API compatibility for easier migration
Performance Considerations
Modern alternatives often provide superior performance:
- DirectXMath: Better SIMD optimization than XNA Math
- DirectXTex: More efficient texture processing
- Native DirectX 11/12: Reduced overhead from utility layers
Code Migration Examples
Matrix Operations Migration
Legacy d3dutil.h Code:
#include "d3dutil.h"
D3DXMATRIX world = D3DXMatrixIdentity();
D3DXVECTOR3 position(1.0f, 2.0f, 3.0f);
D3DXMatrixTranslation(&world, position.x, position.y, position.z);
Modern DirectXMath Code:
#include <DirectXMath.h>
using namespace DirectX;
XMMATRIX world = XMMatrixTranslation(1.0f, 2.0f, 3.0f);
Texture Loading Migration
Legacy Implementation:
ID3D11ShaderResourceView* LoadTextureFromFile(ID3D11Device* device, const wchar_t* filename)
{
ID3D11ShaderResourceView* srv = nullptr;
HR(D3DX11CreateShaderResourceViewFromFile(device, filename, 0, 0, &srv, 0));
return srv;
}
Modern Implementation:
#include "DDSTextureLoader.h"
ID3D11ShaderResourceView* LoadTextureFromFile(ID3D11Device* device, const wchar_t* filename)
{
ID3D11Resource* resource = nullptr;
ID3D11ShaderResourceView* srv = nullptr;
HR(DirectX::CreateDDSTextureFromFile(device, filename, &resource, &srv));
if(resource) resource->Release();
return srv;
}
Frequently Asked Questions
Is it available in the Windows SDK?
No, it is not part of the official Windows SDK or DirectX distribution. It’s a third-party utility header created by Frank Luna for educational purposes. If you need its functionality, you must either obtain it from Luna’s book materials or implement equivalent functions using modern DirectX libraries.
Can I use it with Visual Studio 2019/2022?
Using the original d3dutil.h with modern Visual Studio versions is problematic due to deprecated dependencies. The header relies on D3DX libraries, XNA Math, and dxerr.lib, which are incompatible with current development environments. Migration to modern alternatives is recommended.
What’s the difference between d3dutil.h and d3d11.h?
d3d11.h is an official DirectX 11 header containing core API declarations, while it is an unofficial utility wrapper that simplifies common DirectX operations. Think of d3d11.h as the foundation and it as a convenience layer built on top of it.
How do I replace its functions in my project?
Replace d3dutil.h functions systematically:
- Identify which utilities your code uses
- Find modern equivalents in DirectXMath, DirectXTex, or core DirectX
- Update include statements and namespaces
- Modify function calls to match new APIs
- Test thoroughly to ensure compatibility
Are there performance benefits to avoiding it?
Yes, modern DirectX libraries typically offer better performance than the legacy utilities in d3dutil.h. DirectXMath provides superior SIMD optimization, while DirectXTex offers more efficient texture processing. Additionally, eliminating wrapper layers reduces function call overhead.
Can I create my own version for modern DirectX?
Absolutely. Many developers create custom utility headers that provide similar convenience functions using modern DirectX libraries. This approach allows you to maintain familiar APIs while leveraging current technology. Consider open-sourcing your utilities to help other developers facing similar migration challenges.
Conclusion
Understanding d3dutil.h is crucial for anyone working with legacy DirectX projects or studying older graphics programming tutorials. While this utility header served an important educational role in simplifying DirectX development, its reliance on deprecated libraries makes it unsuitable for modern development.
The transition from d3dutil.h to contemporary DirectX development represents a broader evolution in graphics programming toward more efficient, maintainable, and performance-oriented approaches. Modern alternatives like DirectXMath and DirectXTex not only replace the functionality but often provide superior performance and more robust feature sets.
For developers encountering it in legacy projects, the migration path to modern DirectX is well-documented and supported by Microsoft’s open-source initiatives. While the transition requires effort, the benefits of updated tooling, better performance, and continued support make modernization a worthwhile investment.
Whether you’re maintaining legacy code or learning DirectX development from older resources, understanding the role and limitations of d3dutil.h will help you navigate the evolution of DirectX programming and make informed decisions about graphics development strategies.
